Angular displacement direct reading remote transmission wet type water meter
Angular displacement direct reading remote transmission wet type water meter
Product features
1.Angle sensor
2.Zero error
3.Measurement accuracy
4.Hydropower dual control management
5.Self-service payment inquiry
1.Angle sensor
2.Zero error
3.Measurement accuracy
4.Hydropower dual control management
5.Self-service payment inquiry
Product features
1.Angle sensor

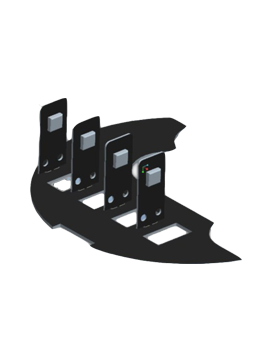

The current angular position reading of each water wheel of the water meter counter is recognized by an angle sensor.
2.Zero error

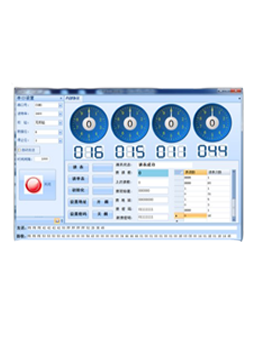

Read the digital wheel 360 degree full circumference measurement, the reading accuracy rate is 100%, no pulse accumulation and visual error.
3.Measurement accuracy
The sensor part has no mechanical contact with the counter and does not affect the accuracy of the original base meter.
4.Hydropower dual control management
The water meter water fee account is zero, and the system can shut down the user's electricity collection fee.
5.Self-service payment inquiry
You can use a card, mobile phone and other self-service payment models to pay and check the water consumption.
The current angular position reading of each water wheel of the water meter counter is recognized by an angle sensor.
2.Zero error
Read the digital wheel 360 degree full circumference measurement, the reading accuracy rate is 100%, no pulse accumulation and visual error.
3.Measurement accuracy
The sensor part has no mechanical contact with the counter and does not affect the accuracy of the original base meter.
4.Hydropower dual control management
The water meter water fee account is zero, and the system can shut down the user's electricity collection fee.
5.Self-service payment inquiry
You can use a card, mobile phone and other self-service payment models to pay and check the water consumption.
Technical Parameters
Pressure loss level | △P63 |
Temperature class | T30 (cold water) |
Operating Voltage | 12V (RS485 interface) or 36V (MBUS interface) |
Direct reading digit | 4 direct reading |
Relative humidity | ≤95% |
Insulation compressive strength | 5000V |
Waterproof level | IP68 |
Dimensions and installation drawings
Nominal diameter DN (mm) | Length L1 (mm) | Length L2 (mm) | Length L3 (mm) | Width W (mm) | Height H (mm) | Thread G | Connection thread R |
15 | 165 | 255 | 14 | 82 | 120 | G3/4B | G1/2 |
20 | 195 | 295 | 16 | 82 | 120 | G1B | G3/4 |
25 | 225 | 341 | 18 | 86 | 120 | G5/4B | G1 |
